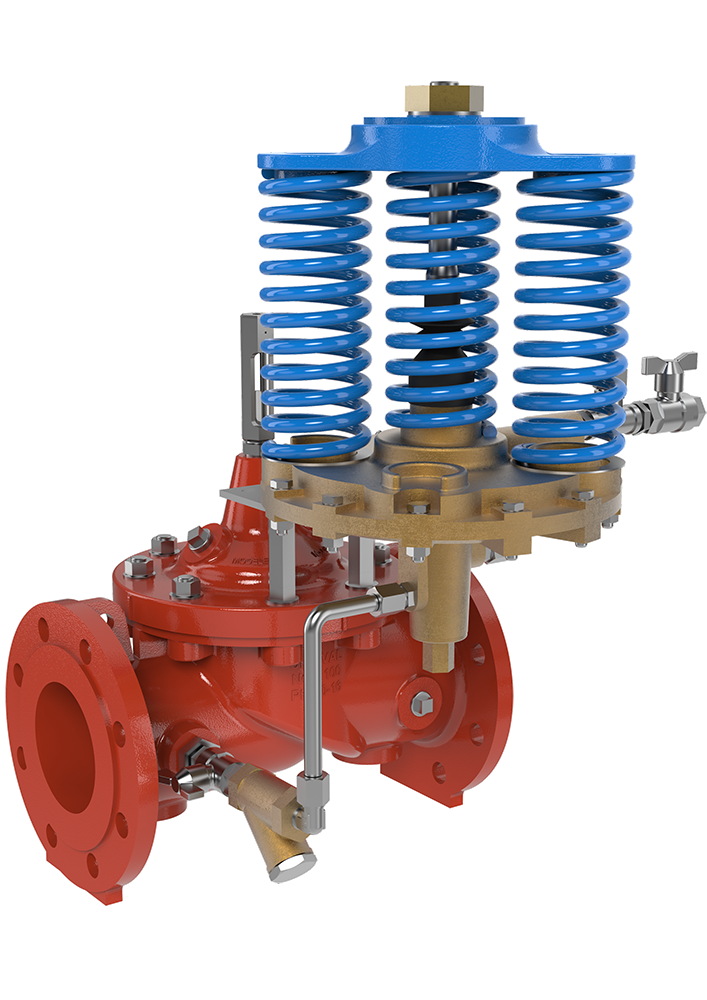

CLA-VAL 210-01 : ON/OFF Altitude Valve

CLA-VAL 210-01 : ON/OFF Altitude Valve

The CLA-VAL 210-01 is typically designed for closed reservoirs  where water is withdrawn through a separate line. The desired water level is set by adjusting the spring force. The pilot control operates on the differential in forces between a spring load and the water level in the reservoir.

The CLA-VAL 210-01 is one way flow only. The reservoir pressure sensing line should be 20 mm minimum I.D. installed with 2° slope from the valve to the reservoir to avoid air pockets.

Included accessories :

  • Valve position indicator X101
  • Gauge cock  CSA-12, Rp 1/2" (upstream)
  • Pressure gauge [0-16 bar]
